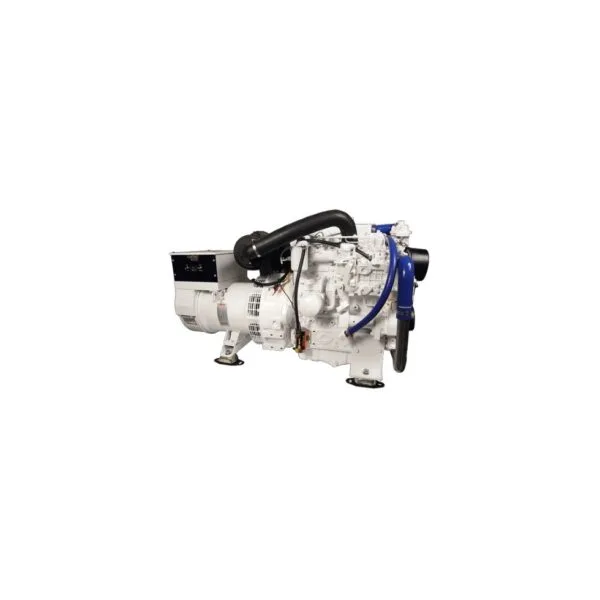

Phasor K4-30.0kW Diesel Marine Generator – 30.0kW 60 Hz – 1800 RPM – Standard Series

Phasor K4-30.0kW Diesel Marine Generator – 30.0kW (60 Hz) – 1800 RPM – Standard Series Specifications

Kubota Model
V3300-E4BG

Number of Cylinders
4

KW Rating at 60 Hz
30.0 Kw

KW Rating at 50 Hz
25.0 Kw

Cubic Inch Displacement
202.48

Electric End
Linz

Bore x Stroke
3.86 x 4.33

Dimensions (LxWxH) without enclosure
53″ X 24″ X 32″

 Dimensions (LxWxH) with enclosure
57″ X 28″ X 34″

Weight (lbs.)
1290

Output (volts)
120/240

 Output (amps)
250/125

Output (watts)
30,000 (30.0KW) at 60HZ / 25,000 (25.0KW) at 50HZ

 Exhaust Dia.
2.5″

Raw Water Dia.
1.0″

Fuel Line Dia.
5/16″

 Return Line Dia.
3/16″
