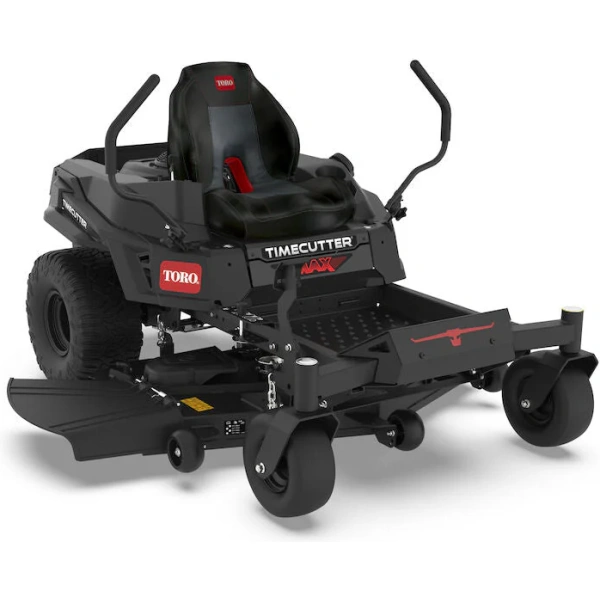

Toro 54 in. Timecutter Max Havoc Zero Turn Mower (77506)

Toro 54 in. Timecutter Max Havoc Zero Turn Mower (77506) Specifications

Air Filter
Standard Kawasaki Air Cleaner

Anti Scalp Wheels
3 Standard

Armrests
Optional

Bagger Capacity
4.9 bushels

Blade Tip Speed
17,700 ft/min / 5,395 m/min

Box Dimensions
82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm

CARB Compliant
Not CARB Compliant

Carrier Frame
3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel

Caster Tires
12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic

Clutch
Electromagnetic

Comfort Platform
Standard Suspension

Cooling System
Air Cooled

Crankshaft
1″ (25 mm) w/Steel Protector

Cup Holder
Standard

Cutter System
Steel Cutting Blade

Deck Design
10-Gauge steel IrongForged

Deck Material
10 Gauge Steel

Deck Size
54 in / 137 cm

Discharge Chute
Side

Drive System
Hydrostatic

Drive Tires
20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm)

Drive Type
Rear-Wheel Drive

Engine
23 hp* Kawasaki V-Twin 726cc

Engine Brand
Kawasaki

Engine Displacement (cc)
726 cc

Engine Horsepower
23.0 hp

Engine Power (kW)
17.2 kW

Foot Operated Height of Cut
Standard

Forward Ground/Transport Speed
Up to 7.0 mph / 11.2 kph

Forward Mowing Speed
Up to 7.0 mph / 11.2 kph

Frame
3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing

Fuel Capacity
5 gal. / 18.9 L / 20 Qt.

Fuel Type
Gasoline

Greasable Bearings
Yes

Height of Cut
1.0 – 5.0 in. / 2.5 – 12.7 cm

Hitch Bracket
Standard

Hour Meter
Optional

Hydraulic Drive
Standard

Lighting
Optional

Number of Blades
3

Product Type
TimeCutter Max

Product Use
Residential

Recommended Oil Type
10W-30

Roll-Over Protection (ROPS)
Optional

Seat
19″ Gaming Style

Spindle Bearings
Maintenance-free

Spindle Housing
Cast-Aluminum

Start Type
Electric

Steering Controls
Twin Lever

Steering Dampeners
Standard Dampers

Terrain Type
Flat with Obstacles

Tires
12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear

Transmission
Dual Hydrostatic HG-EZT2200

Washout Port
Standard

Weight
653 lbs / 296.2 kg
